Increases airflow through your rack server to prevent equipment from overheating and helps keep air intake clean.

  • Helps boost rack equipment performance by increasing airflow through the enclosure
  • Includes 12 high-performance 120V fans pre-mounted in 3 separate door panels

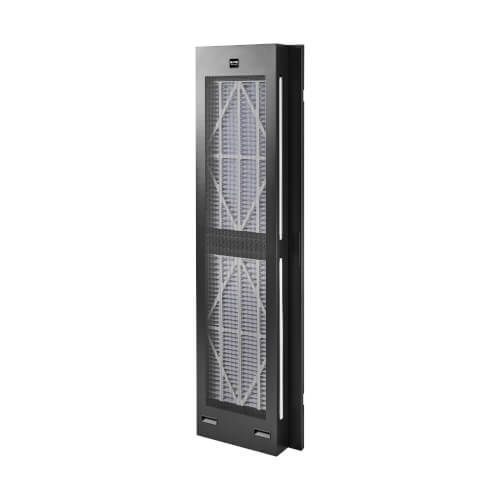

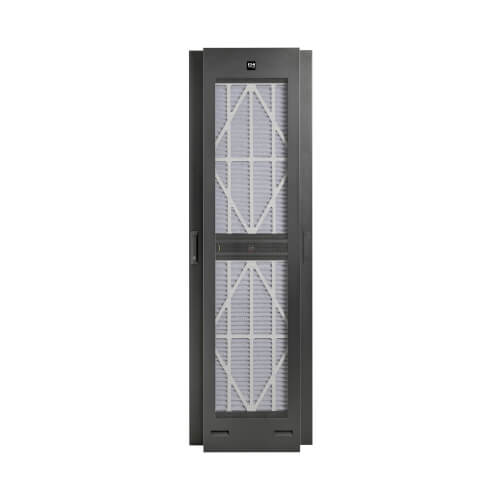

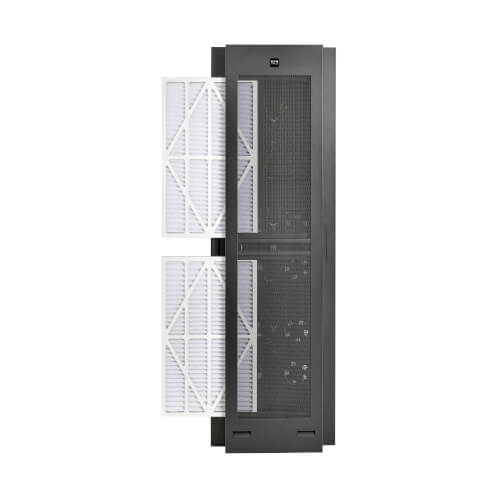

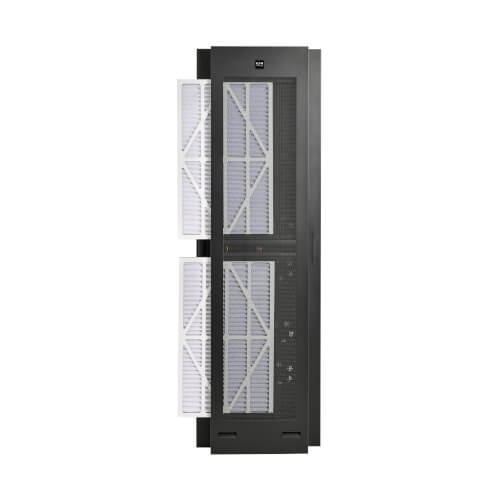

  • Dust filters come pre-installed in the fan door assembly’s front door to keep air clean
  • Plug-and-play operation with all necessary toolless mounting hardware included
  • Included C13 to 5-15P input cord connects to the door’s C14 power inlet
  • 2-year limited warranty

Features

Rack Cooling Fans for 42U Standard-Width Enclosures

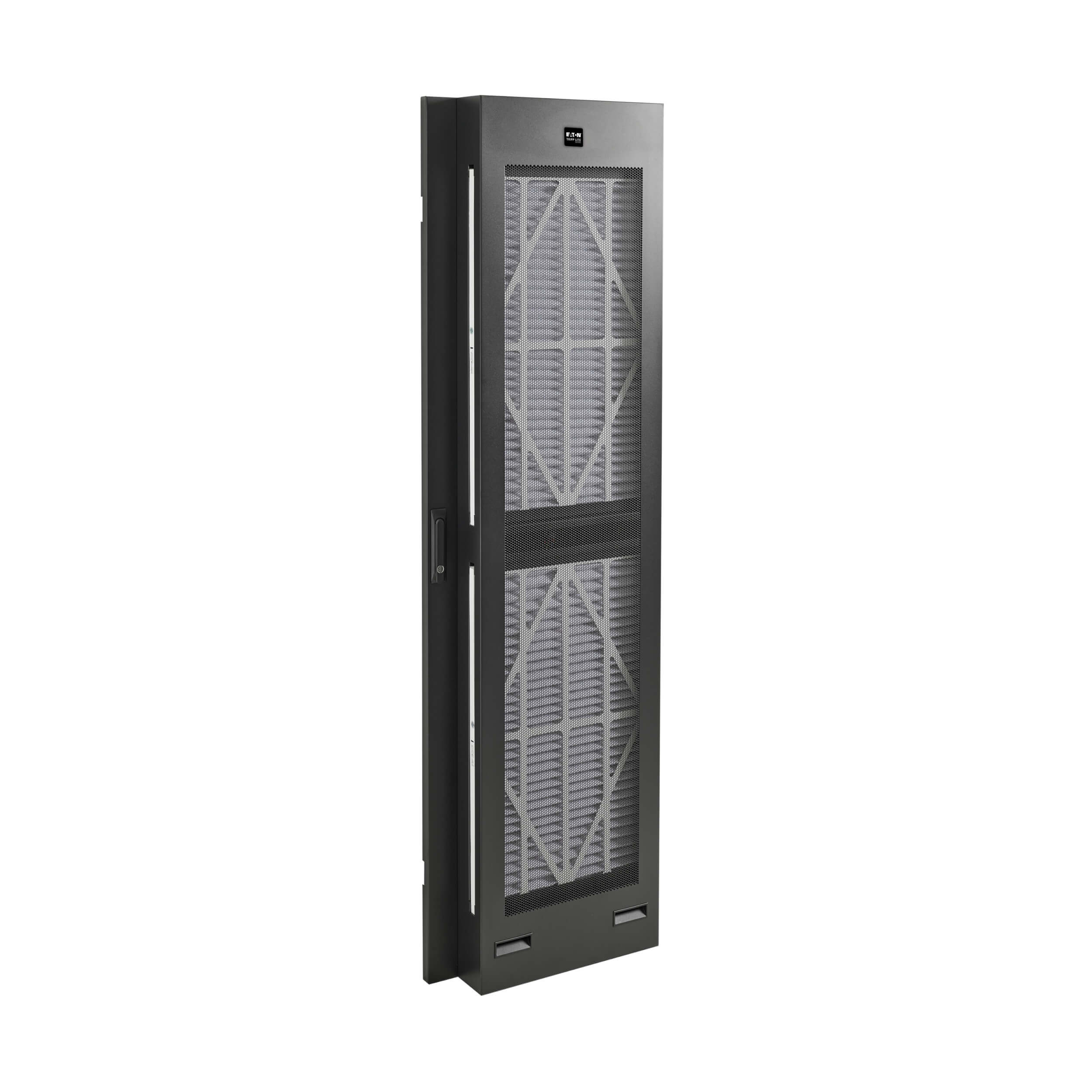

The SmartRack® SRFFD4224 is a server rack door with cooling fans and air filters integrated into it. Designed specifically for SmartRack’s 42U standard-width rack enclosures, these fans help keep rack-mounted equipment cool to maintain top performance and avoid failures that can lead to costly downtime, damage or data loss.

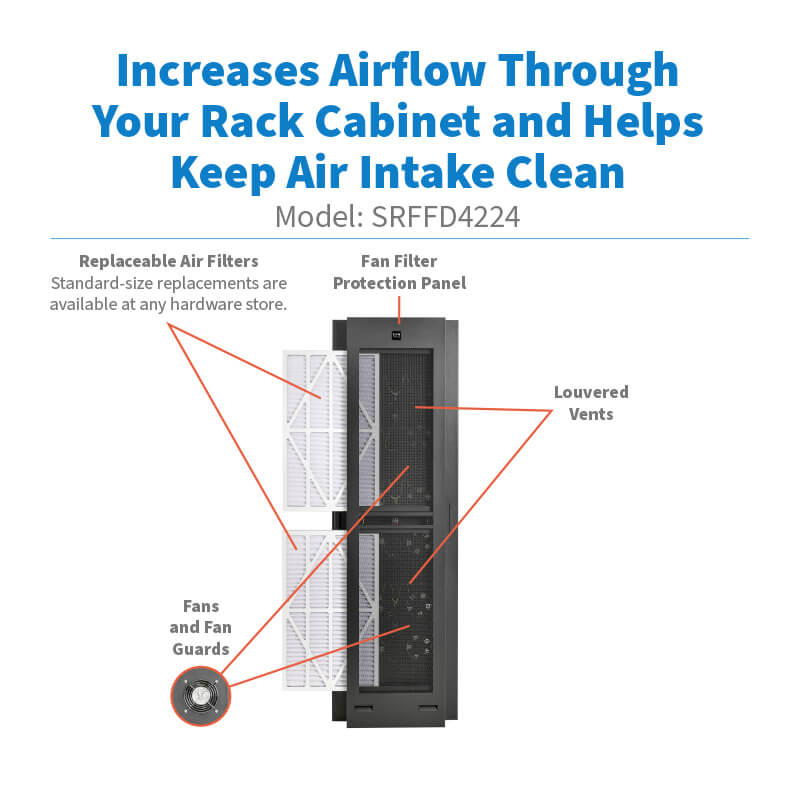

Increases Airflow and Helps Keep Air Intake Clean

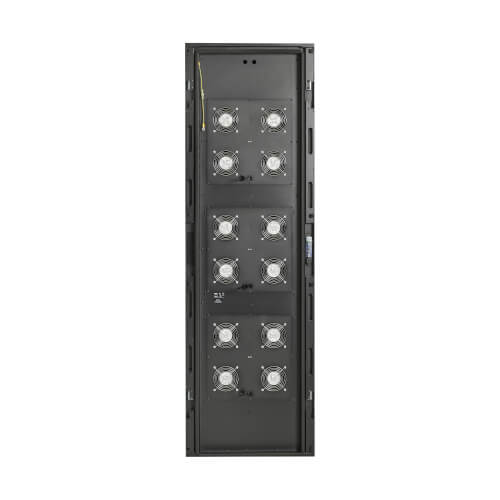

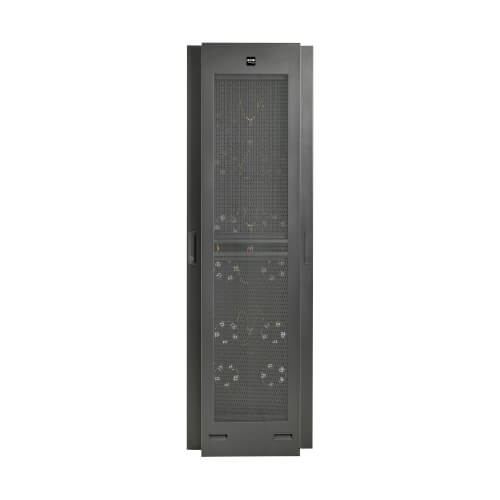

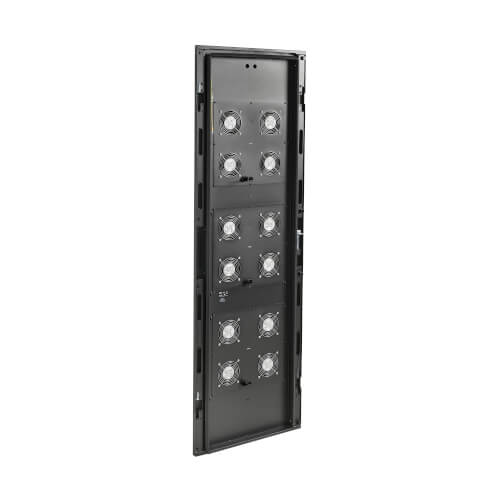

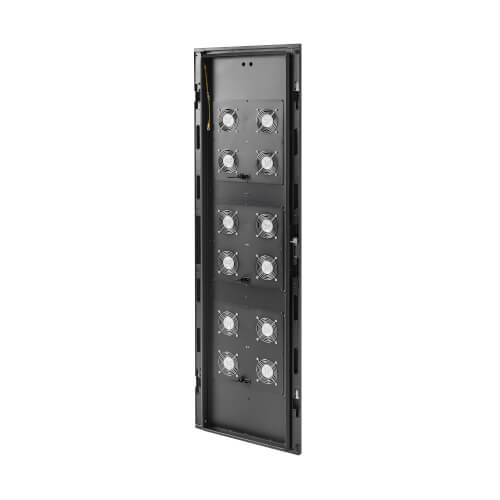

The SRFFD4224 includes three separate fan panels with four 120V fans per panel (12 fans total). It also comes with a perforated outer panel to allow air to pass through, fan guards and two pre-installed dust filters.

Plug-and-Play Construction for Easy Installation
All necessary toolless mounting hardware is included. The SRFFD4224 is made from heavy-duty cold-rolled steel with a black finish. The six-foot power cord with NEMA 5-15P plug connects to any compatible wall outlet, PDU or UPS system.

System Requirements

42U SmartRack enclosure with standard 24 in. exterior width

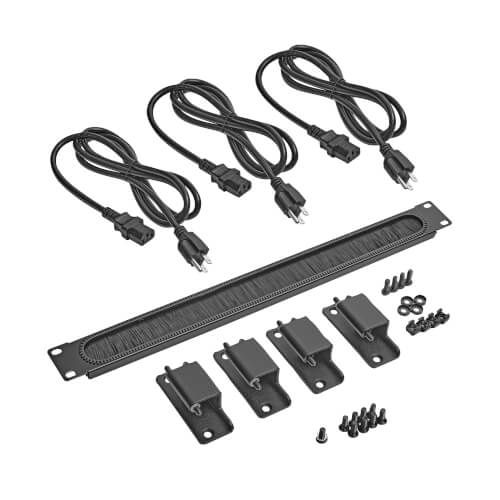

Package Includes

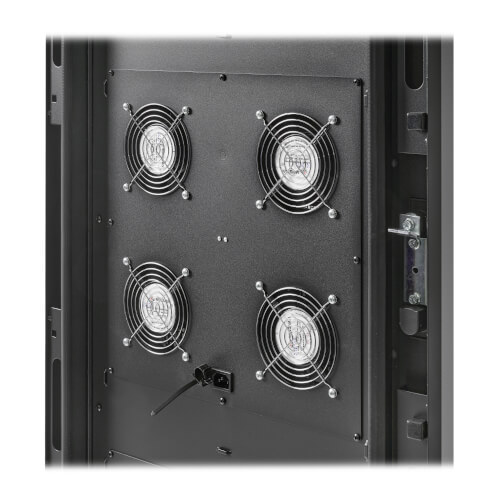

  • (3) Fan panels with 4 fans per panel

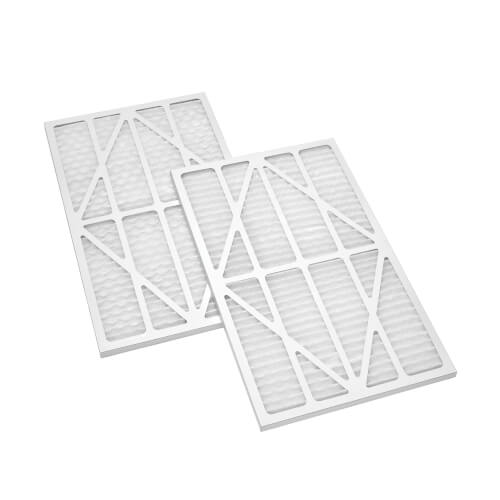

  • (2) Air filters, 18 x 30 x 1 in.
  • Perforated outer panel
  • Fan guards
  • C13 to NEMA 5-15P power cord, 6 ft. (1.8 m)
  • Mounting hardware
  • Owner’s manual

Specifications

OVERVIEW
UPC Code037332297020
Accessory TypeCooling Accessories; Fan Panel; Filter Kit
Accessory ClassCooling Accessories; Rack Accessories
INPUT
Nominal Input Voltage(s) Supported120V AC
Nominal Input Voltage Description120V AC 50/60 Hz
Input Connection TypeNEMA 5-15P
Input Plug FeaturesNEMA 5-15P
Voltage Compatibility (VAC)120
Input Frequency50/60 Hz
Input Cord Length (ft.)6
OUTPUT
Frequency Compatibility50 / 60 Hz
COOLING
Cooling TypeActive
PHYSICAL
Shipping Dimensions (hwd / in.)75.59 x 23.82 x 6.50
Shipping Weight (lbs.)124.50
Unit Dimensions (hwd / in.)75.280 x 23.540 x 6.220
STANDARDS & COMPLIANCE
Product CertificationsCAN/CSA-C22.2 No. 62368-1 (Canada); IEC 62368-1; UL 62368-1
Product ComplianceEIA/ECA-310-E
WARRANTY & SUPPORT
Product Warranty Period (Worldwide)2-year limited warranty
